2,000.00 - 2,500.00 / pices( + 18% GST applicable)
Buy Now
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Power | HIGH |
| Color | Black & White |
| Brand Name | RFCONNECTORHOUSE |
| Click to view more | |
Product Details
Material
Metal
Bandwidth
WIDE BAND
Country of Origin
India
Feature
Long Life, Rust Proof,High Performance,Easy To Operate
Thickness
15 mm
Finishing
Polished
Frequency
50 Hz
Usage
Industrial
Port
NEW DELHI
Payment Terms
D/A, D/P
Delivery Time
1 DAY
Packaging Details
as requird buyer
Operating Frequency Band 12.4 –18.0 GHz Attenuation 0.30 dB/ft | 0.99 dB/m Average Power 400 W Peak Power 100.0 kW VSWR 1.10 General Specifications Component Flexible Twist Waveguide Size WR62 | WG18 | R140 Interface PDR140 Interface 2 UBR140 Mechanical Specifications Maximum Twist 445.00 °/m | 135.00 °/ft Minimum Bend Radius, Multiple Bends (E Plane) 52.00 mm | 2.00 in Minimum Bend Radius, Multiple Bends (H Plane) 102.00 mm | 4.00 in Pressurization, maximum 45 psi | 310 kPa
- Frequency: 8.2 – 12.4 GHz (X-Band)
- Isolation: ≥ 20 dB
- Insertion Loss: ≤ 0.5 dB
- VSWR: ≤ 1.25:1

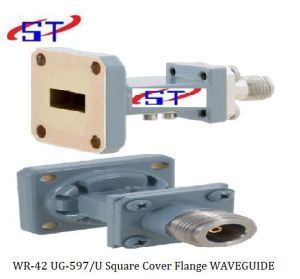

Looking for "Straight Waveguide Section" ?
