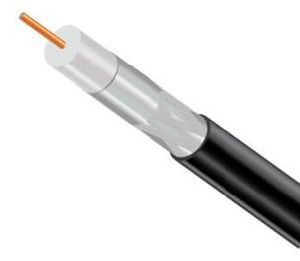

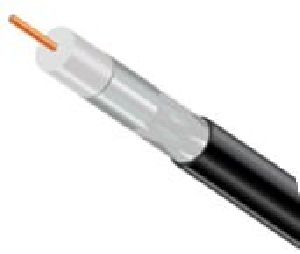

HLF LMR Series Cable

Center Conductor Solid Bare Copper 0.0559 inch 1.42 mm Dielectric Foamed Polyethylene 0.150 inch 3.81 mm Inner Shield Sealed APA Tape 0.157 inch 3.99 mm Outer Shield 36AWG, 95% Tinned Copper Braid 0.178 inch 4.51 mm Jacket Black PE 0.240 inch 6.10 mm

50 OHM Cable D-FB Coaxial Cable 5 D-FB: 1.8 BC+ 5.0FPE+ AL-FOIL+ BC BRAID+ 7.6PVC 7 D-FB: 2.6 BC+ 7.3FPE+ AL-FOIL+ BC BRAID+ 9.8PVC 8 D-FB: 2.8 BC+ 7.8FPE+ AL-FOIL+ BC BRAID+ 11.1PVC 10 D-FB: 3.5 BC+ 10.0FPE+ AL-FOIL+ BC BRAID+ 13.1PVC 12 D-FB: 4.4 BC+ 12.4FPE+ AL-FOIL+ BC BRAID+ 15.6PVC

Center Conductor Solid Copper Clad Aluminum Wire 0.0701 inch 1.78 mm Dielectric Foamed Polyethylene 0.190 inch 4.83 mm Inner Shield Sealed APA Tape 0.196 inch 4.98 mm Outer Shield 112/0.15 AL-MG(90-94%) 0.225 inch 5.72 mm Jacket Black PE 0.300 inch 7.62 mm

Center Conductor Solid Bare Copper 0.0441 inch 1.12 mm Dielectric Foamed Polyethylene 0.116 inch 2.95 mm Inner Shield Sealed APA Tape 0.123 inch 3.12 mm Outer Shield 36AWG, 90% Tinned Copper Braid 0.144 inch 3.65 mm Jacket Black PE 0.195 inch 4.95 mm

Center Conductor Copper Clad Steel 0.0177 inch 0.45 mm Dielectric Solid Polyethylene 0.061 inch 1.54 mm Inner Shield Unsealed APA Tape 0.065 inch 1.65 mm Outer Shield 38AWG, 90% Tinned Copper Braid 0.081 inch 2.05 mm Jacket Black PE 0.110 inch 2.79 mm

Center Conductor Solid Bare Copper 0.0370 inch 0.94 mm Dielectric Foamed Polyethylene 0.110 inch 2.79 mm Inner Shield Sealed APA Tape 0.116 inch 2.95 mm Outer Shield 36AWG, 95% Tinned Copper Braid 0.138 inch 3.50 mm Jacket Black PE 0.195 inch 4.95 mm

Center Conductor Solid Bare Copper 0.0441 inch 1.12 mm Dielectric Foamed Polyethylene 0.116 inch 2.95 mm Inner Shield Sealed APA Tape 0.123 inch 3.12 mm Outer Shield 36AWG, 90% Tinned Copper Braid 0.144 inch 3.65 mm Jacket Black PE 0.195 inch 4.95 mm

Center Conductor Solid Bare Copper 0.0559 inch 1.42 mm Dielectric Foamed Polyethylene 0.150 inch 3.81 mm Inner Shield Sealed APA Tape 0.157 inch 3.99 mm Outer Shield 36AWG, 95% Tinned Copper Braid 0.178 inch 4.51 mm Jacket Black PE 0.240 inch 6.10 mm

Center Conductor Solid Copper Clad Aluminum Wire 0.0701 inch 1.78 mm Dielectric Foamed Polyethylene 0.190 inch 4.83 mm Inner Shield Sealed APA Tape 0.196 inch 4.98 mm Outer Shield 112/0.15 AL-MG(90-94%) 0.225 inch 5.72 mm Jacket Black PE 0.300 inch 7.62 mm

RF Cables: HLF 100/200/400/240/300/400; RG6/11/58/59/142/174/178/179/188/213/214/217/223/316/400, 1.13 mm etc. as alsoHigh Frequency Cables Suco 141/0.86/RG402/ 405/ SS402/ 405/ LL120/ 142/335 etc.

RF Connectors: N, DIN, BNC, SMA, TNC, MCX, MMCX, SMB, SMC, SSMA, SMZ, 1.6/5.6, 1.0/2.3, FME, UHF, RCA as alsoHigh Frequency Connectors2.4mm/2.92mm/1.95mm/3.5mm/N/ SMA/ DIN/ APC7 etc.

RF Adaptors: N/L9/SMA/SMB/BNC/TNC/SMZ/MCX/DIN in various combinations of Male and Female includingHigh Frequency adaptors 2.4/2.92/3.5mm etc.

RF Cable Assemblies & Jumpers: All kind of cable assemblies and jumpers including PrecisionHigh frequency Cable assemblies with customized combination of cable type, length and connectorswith a fast turnaround time for custom cable assemblies.

RF Antennae: GSM Magnetic Antenna, USB Modem Antenna, Mobile Phone antenna and adapter, Patch Panel Antenna, Rubber Antenna, GPS antenna, Wi-Fi antenna

Microwave Products: Attenuators, Splitters, Combiners, Couplers, RF Filters, Power Dividers, Matching Transformers, High power dummy loads, DC Blocks, Multi way couplers, LPF, BPF, Duplexers, Lightning Arrestors, all infrastructure items for IBS and BTS

Center Conductor Solid Copper Clad Aluminum Wire 0.1760 inch 4.47 mm Dielectric Foamed Polyethylene 0.455 inch 11.56 mm Inner Shield Sealed APA Tape 0.463 inch 11.76 mm Outer Shield 34AWG, 90% Tinned Copper Braid 0.491 inch 12.47 mm Jacket Black PE 0.590 inch 14.99 mm

Center Conductor Solid Copper Clad Aluminum Wire 0.1091 inch 2.77 mm Dielectric Foamed Polyethylene 0.285 inch 7.24 mm Inner Shield Sealed APA Tape 0.292 inch 7.42 mm Outer Shield 34AWG, 90% aluminium Braid Braid 0.320 inch 8.12 mm Jacket Black PE 0.405 inch 10.29 mm
