Solar Products

ST08MC421ROMF Solar Products

Rated Voltage (VDC) : 1000

Type of appliance : -PV Component Connector

Rated Impulse Voltage (V) : 8000

Rated Current (A) : 25A

Pollution Degree (1/2/3/4) : 3

Temp. Range : -40°C~+90°C

Degree of Protection (IP Code) : IP67

Plug Power : 30N-80N

ST08MC451ROMF Solar Products

Rated voltage : 1000V DC

Shell protection degree : IP67

Flame class : UL94-V0

Specification of Connecting Line : 4mm2

Pollution degree : 2

Ambient temperature range : -40～+85℃

ST08MC4MFRO10 Solar Products

Suitable Current : 65 A

Rated Vltage : 1000V (TUV), 600V(UL)

Contact resistance : ≤5m Ω

Degree of Protection (IP Code : IP67

Ambient temperature range : -40～+85℃

Flame class : UL94-V0

ST08MC4MFEL2546 Solar Products

Product Category : Solar PV Connector

Sub Type : 2.5,4,6sqmm DC Cable

Current Rating : 20A (4 sq.mm), 30A (30 sq.mm

Voltage Rating : 1000/1500 Vdc

Insulation Resistance : >1000 MΩ

Test Voltage : 6000/8000 Vac ( 1 min )

Contact Resistance (Initial) : <0.35 mΩ

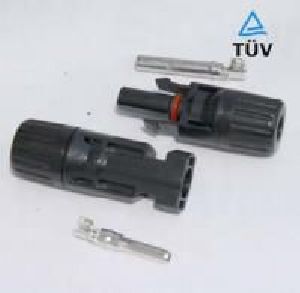

ST08MC4MFRO2546 Solar Products

Product Category : Solar PV Connector

Sub Type : 2.5,4,6sqmm DC Cable

Current Rating : 20A (4 sq.mm), 30A (30 sq.mm)

Voltage Rating : 1000/1500 Vd

Insulation Resistance : >1000 MΩ

Test Voltage : 6000/8000 Vac ( 1 min )

ST08MC4DO15A Solar Products

Rated voltage : TUV 1500V DC / UL 600V DC

Rated current : 15A

Suitable cable cross sections : NO

Terminal size : Φ4.0mm

Test voltage : DC 8KV 1min

Pollution degree : 2
