Rigid Flexible Waveguide

Straight Rigid Flexible Waveguide

Desc : Straight sections are used to make connections between components in waveguide systems. Lengths and combinations are available on special order. VSWR is better than 1.1 over the full waveguide frequency band.

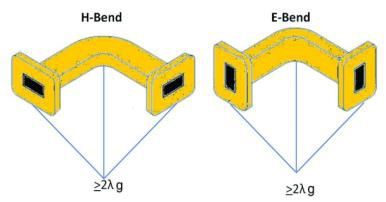

Waveguide Bend

Desc : Waveguide bends are used to direct high frequency signals propagating through a waveguide in a specific direction. These bends allow the change in direction of a signal within a waveguide, with minimal loss, reflection and distortion of the electric and magnetic fields

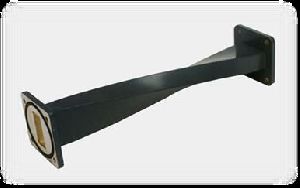

Waveguide Twist

Desc : A gradual twist in the waveguide is used to turn the polarisation of the waveguide and hence the waveform. In order to prevent undue distortion on the waveform a 90° twist should be undertaken over a distance greater than two wavelengths of the frequency in use.stom made.

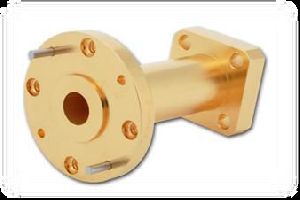

Waveguide Transition

Desc : waveguide transitions operate from 5.85 to 110 GHz across fourteen frequency bands and provide a smooth transition between these different waveguide sizes. ... The waveguide transition series has minimal loss and VSWR as low as 1.08:1

Waveguide to Coaxial Adaptor

Desc : Waveguide-to-coaxial adapters are composed of a waveguide component that fits the waveguide tubing and ends with a flange, and a coaxial probe assembly with a coaxial adapter and connection hardware. The coaxial cable adapter is typically tapped through one wall of the waveguide adapter housing

Crossguide Directional Coupler

Desc : Crossguide Couplers are general purpose, 3-port directional couplers. They cover the frequency range of 18 – 60 GHz in four waveguide bands. The mid-band nominal coupling values available are 20dB and 30 dB.
