High Frequency Test Cable Assembly


High Frequency Test Cable Assembly
Business Type Manufacturer, Exporter, Supplier, Trader, Distributor, Importer
Country of Origin India
Packaging Type Box, Plastic Packet, Plastic Bag
Color Black, Brown, Creamy, Dark Brown, Grey, Ivory, Light Grey, Off White, White
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Specialities
Waterproof, Rust Proof, High Acurace, Heat Resistant, Hard Structure
Warranty
1 Year, 2 Year, 5 Year
Corrosion Resistance
Yes, No
Frequency
50Hz, 60Hz
Rust Proof
Yes, No
Details

Yes! I am interested

  • Additional Images

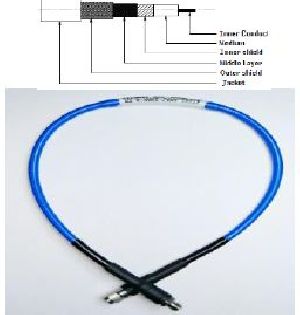

  • ST01NNMM1M06 High Frequency Test Cable Assembly

    Inner Conductor : Silver plated

    Copperwire : 0.90mm

    Insulation : PE - 2.95mm

    Inner Shield : Silver Plated Copper

    Wire : 3.45mm

    Outer Shield : Silver Plated Copper

    Wire : 3.95mm

    Jacket : PVC - 5.30mm

    Bending Radius : 25.4mm

    Frequency : 6Ghz

    Impedance : 50Ohm

    Max. Power : 100w

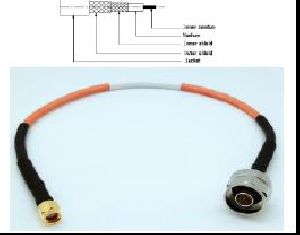

  • ST01SMANMMUF1M06 High Frequency Test Cable Assembly

    Inner Conductor : Silver plated

    Copperwire : 0.92mm

    Insulation : PTFE - 3.00mm

    Inner Shield : Silver Plated Copper

    Wire : 3.50mm

    Outer Shield : Silver Plated Copper

    Wire : 3.95mm

    Jacket : PVC - 5.20mm

    Bending Radius : 25.4mm

    Frequency : 6Ghz

    Impedance : 50Ohm

    Max. Power : 100w

  • ST01SMANMMTC1M06 High Frequency Test Cable Assembly

    Inner Conductor : Silver plated

    Copperwire : 0.93mm

    Insulation : PTFE - 3.00mm

    Outer Shield : Silver Plated Copper

    Wire : 3.95mm

    Jacket : FEP - 5.20mm

    Bending Radius : 25.4mm

    Frequency : 6Ghz

    Impedance : 50Ohm

    Max. Power : 100w

  • ST01SMANMMTC1M18 High Frequency Test Cable Assembly

    Inner Conductor : Silver plated

    Copperwire : 1.44mm

    Insulation : LDPTFE - 3.80mm

    Inner Shield : Silver Plated Copper

    Wire : 4.00mm

    Middle Shield : LDPTFE - 4.30mm

    Outer Shield : Silver Plated Copper

    Wire : 4.65mm

    Jacket : FEP - 5.00mm

    Bending Radius : 25.4mm

    Frequency : 18Ghz

    Impedance : 50Ohm

    Max. Power : 100w

  • ST01SMAMMTC265 High Frequency Test Cable Assembly

    Inner Conductor : Silver plated

    Copper Wire Insulation : LDPTFE

    Inner Shield : Silver plated flat copper wire braid

    Middle Shield : LDPTFE

    Outer Shield : Silver Plated Copperwire Braid

    Jacket: : FEP

    Inner Armor : Silver Plated Copper

    Strengthened Shield : Silver plated copper wire

    Anti-twist Layer : Polyimide

    Outer Armor : PTFE braid(purple+black)

    Min Bending Redius : 25.0mm

    VSWR : 1.15:1

    Impedance : 50ohm

    Frequency : 26.5Ghz

  • ST01SMAMFUFTC265 High Frequency Test Cable Assembly

    Inner Conductor : Multi-layer

    Spiral Silver plated copper : 1.02mm

    Insulation : LDPTFE - 3.07mm

    Inner Shield : Plated flat copper

    Wire Braid : 3.27mm

    Middle Shield : LDPTFE - 3.47mm

    Outer Shield : Silver Plated Copper

    Wire : 3.80mm

    Jacket : PUR - 5.20mm

    Frequency : 26.5Ghz

    Max. Power : 100w

    Impedance : 50Ohm
